TableCurve 2D Documentation

Rational Equations

Rational Equations¶

Standard Rationals¶

Generate/ratl1.gif

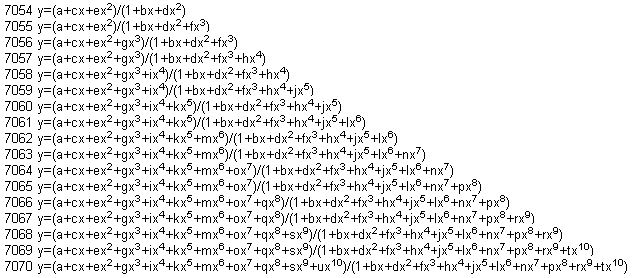

High Precision Standard Rationals¶

Generate/ratl2.gif

Y-Transformed Rationals¶

Generate/ratl3.gif

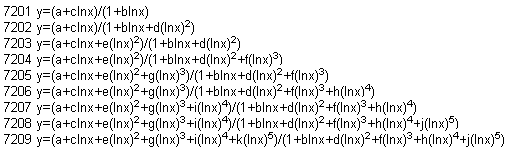

Log(X) Rationals¶

Generate/ratl4.gif

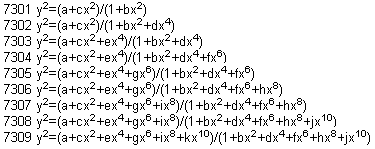

Square Root Even Order Rationals¶

Generate/ratl5.gif

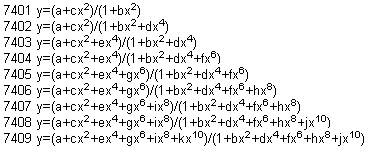

Even Order Rationals¶

Generate/ratl6.gif

Half Order Rationals¶

Generate/ratl7.gif

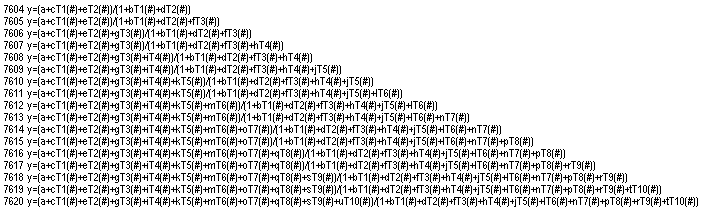

Chebyshev Rationals¶

The Chebyshev Rationals map x to the range of -1 to 1.

Generate/ratl8.gif

Fourier Rationals¶

The Fourier Rationals map x from 0 to p.

Generate/ratl9.gif

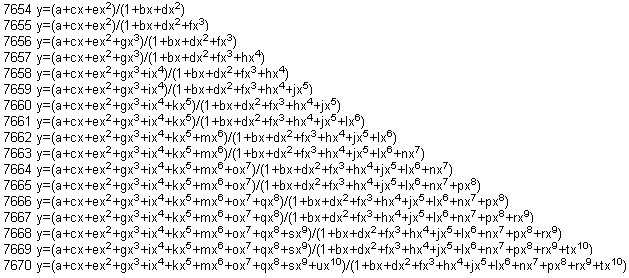

Chebyshev Converted to Standard Rationals¶

Generate/ratl10.gif

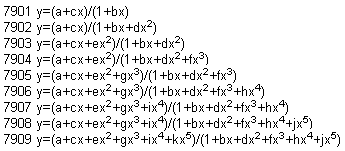

Iteratively Fitted Standard Rationals¶

Generate/ratl11.gif

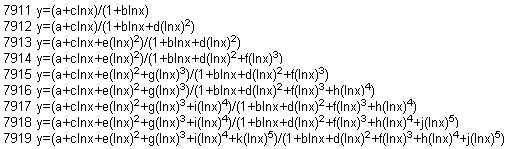

Iteratively Fitted Log(X) Rationals¶

Generate/ratl12.gif

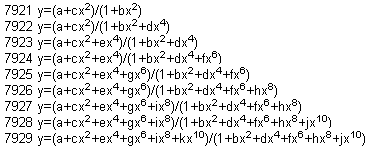

Iteratively Fitted Even Order Rationals¶

Generate/ratl13.gif

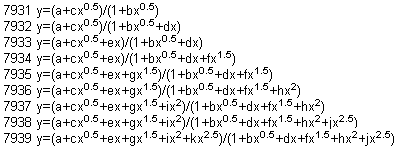

Iteratively Fitted Half Order Rationals¶

Generate/ratl14.gif
